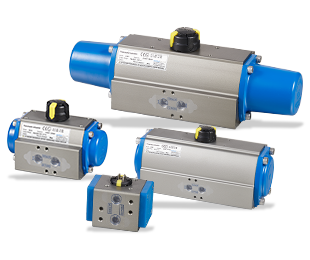

Overview

KOSAPLUS pneumatic actuator is an automatic valve control device driven by compressed air, featuring high precision and durability. It is widely used in various industrial automation sites around the world.

KOSAPLUS currently mass-produces two structural types of actuators: Scotch Yoke and Rack & Pinion, and can provide the most suitable automation solutions according to the different usage requirements of customers.

Product features

- Precise control of opening and closing

- Multiple drive structure options (fork type and rack and pinion type)

- Excellent durability and reliability

- Standardized design with strong compatibility

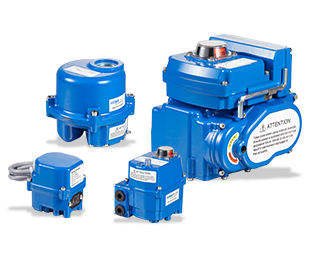

Overview

The KOSAPLUS electric actuator is an automatic control device that uses an electric motor as the power source to drive the opening and closing of valves. The product is applicable to the control of rotary valves such as ball valves, butterfly valves and dampers in various industrial fields. It features high stability, long service life and convenient installation and maintenance.

KOSAPLUS offers two internal drive structures: Rack & Pinion and Scotch Yoke, providing customers with the optimal solution based on the torque characteristics of the valve and the on-site space conditions.

Product series range

KE001 ~ KE008: It adopts a flat gear structure, ensuring stable torque and is suitable for small valves

KE010 ~ KE300: It adopts a swing fork structure and is suitable for high-torque and large valve control

The product complies with CE certification and IECE/ATEX international explosion-proof certification

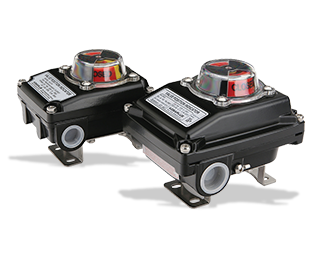

Product features:

-Quick installation cam

-Subdivision sawtooth (resolution 2.25 °)

-Fixed cover bolt

-Compact size (height 86.5mm)

-Easy installation bracket (IS05211)

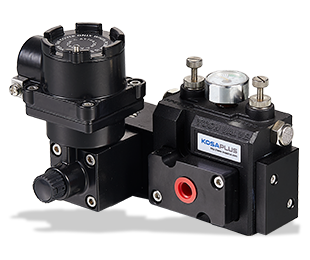

Product features:

1. The junction box can rotate freely up to a maximum of 270 °, providing excellent installation flexibility.

2. The conveniently located top pressure gauge allows you to easily monitor the compressed air status at a glance.

3. By precise speed control, water hammer phenomenon can be prevented and smooth operation can be achieved.

4. The use of a waterproof valve can prevent rainwater or condensed water from entering the guide hole of the solenoid valve, ensuring its reliable operation.

5. The muffler installed on the side can reduce the noise generated during exhaust, and the interface specification is PF1/4.

6. The metal filter embedded in the air inlet can prevent foreign objects from entering, effectively avoiding faults, reducing maintenance work, and extending the product's service life.

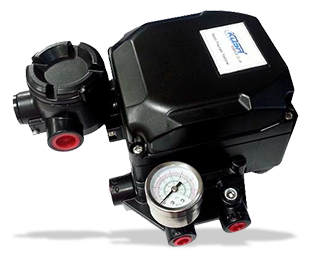

Product features：

- Simple zero and span adjustment.

- Easy maintenance due to built-in module type.

- Strong to vibrations and No resonance between 5-200Hz.

- By-pass valve(A/M switch) installed.

- Air connection part is designed for detachability and it can be changed PF/NPT tapping threads in the field easily.

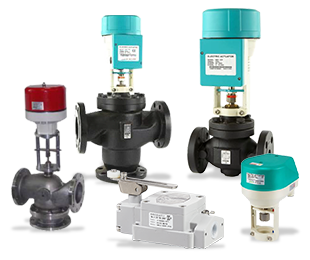

The product range mainly includes:

KU100 explosion-proof straight stroke switch feedback device

Electric linear actuator

Three way control valves (KXS-21 series, KXF-21 series, KXF-21/22 (B) series, KXF-33 series, KXF-D series, KXF-S series), etc
